LCX-LUKY4040XXXX

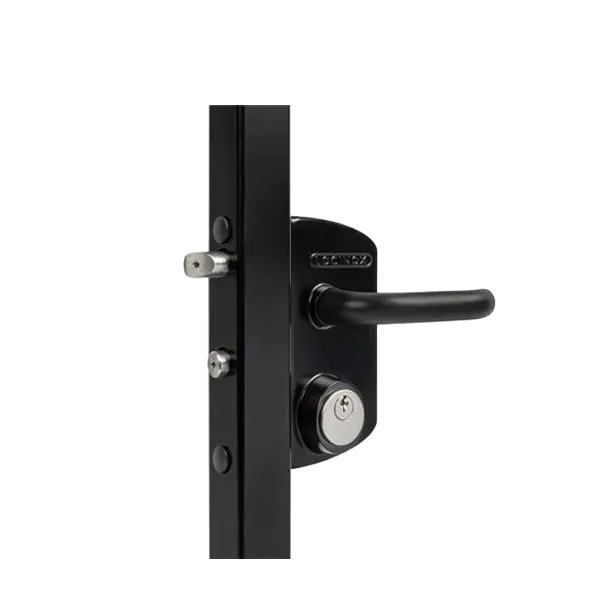

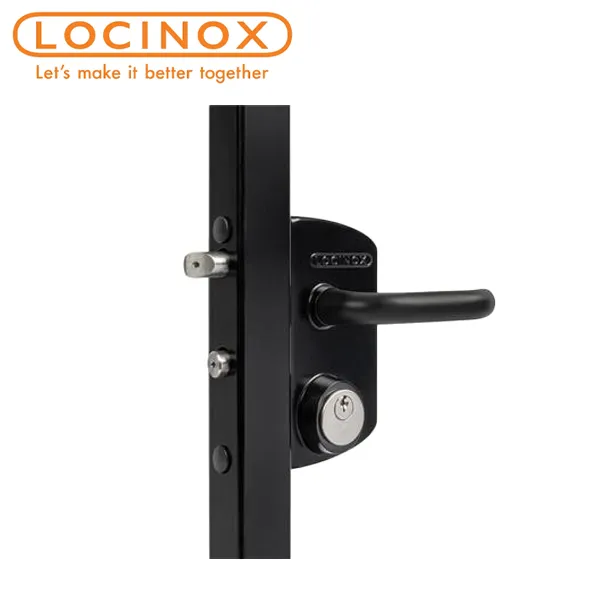

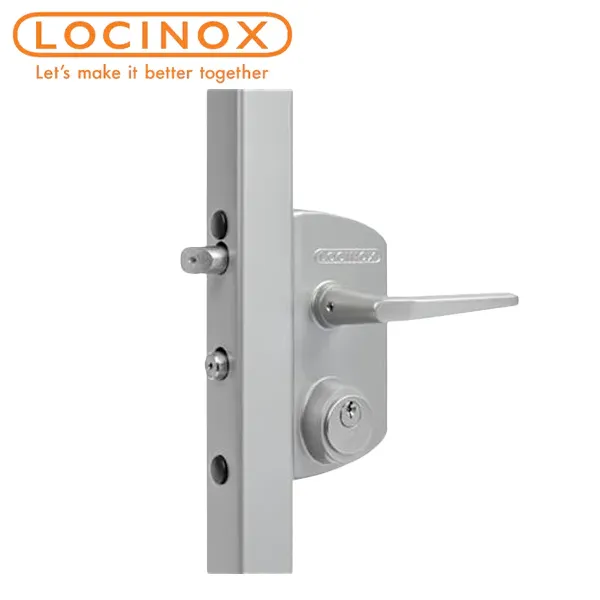

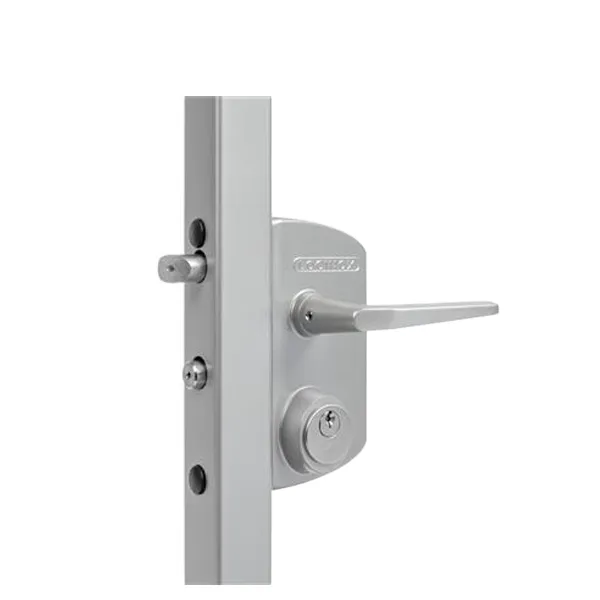

Excellent gate lock with aluminum housing and stainless steel mechanism. Specially developed to use with a standard 1-1/8" Mortise cylinder. Comes standard with 5pin keyed alike or keyed differently (drilled 6pin). The latch and deadbolt have 3/8" continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8" guarantees secure locking.

Features:

• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
• Lock for 1-1/8' length Mortise profile cylinder (Schlage Keyway & Adams Rite Cam)
• Fixing cylinder inch thread 8/32'
• Easy left or right changing of the self-latching daybolt
• 23 mm throw of the dead bolt, in 1 turn of the key
• Key-operated self-latching bolt
• Continuous adjustment of 10 mm for the bolts without removing the lock
• 4-hole fixing with two hexagon socket head screws
• Interchangeable with all Locinox locks
• 80 mm lock box width
